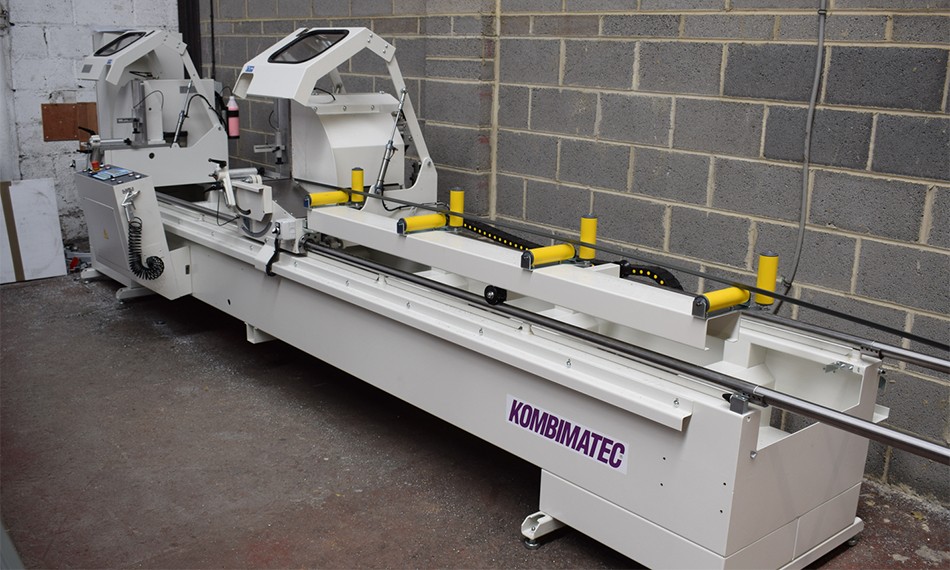

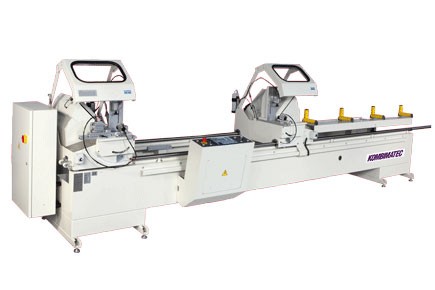

DGS450 Automatic double-head PVC and aluminium profile cutting machine (computerised, 550 mm disc diameter)
€36,000.00
(VAT included)
€29,752.07
(VAT excluded)
shipping cost is not included
How can we help?
Description
For Aluminium and Vinyl/PVC Profiles
DESCRIPTION:
DGS450 Double-Cutter Saw with manual wheel-operated length adjustment, 450 mm diameter TCT saw blades, maximum cutting length of 4000 mm, adjustable angles 90–45 degrees, high cutting capacity, tilting saw heads, vertical and horizontal pneumatic clamping, two-hand safety control, mist spray units for cooling the cutting edges, central support, safety guards, service keys, Instruction Manual. CE marking.
OPTIONS:
Head rotation to 22.5 degrees Colour touch screen
Pneumatic centre support
Crossbar stop for arrow heads
Pneumatic side support for long bars
Profile height caliper
4/5/6 m versions
TECHNICAL DATA:
Voltage: 415 V, 3-phase, 50 Hz
Compressed air: 7 bar, 100 psi
Dimensions (length, width, height), Weight (kg):
4 m version 5260 x 1350 x 1580 mm, 1,035 kg
5m version 6260x1350x1580mm, 1,230 kg
6m version 7260 x 1350 x 1580 mm, 1,430 kg
