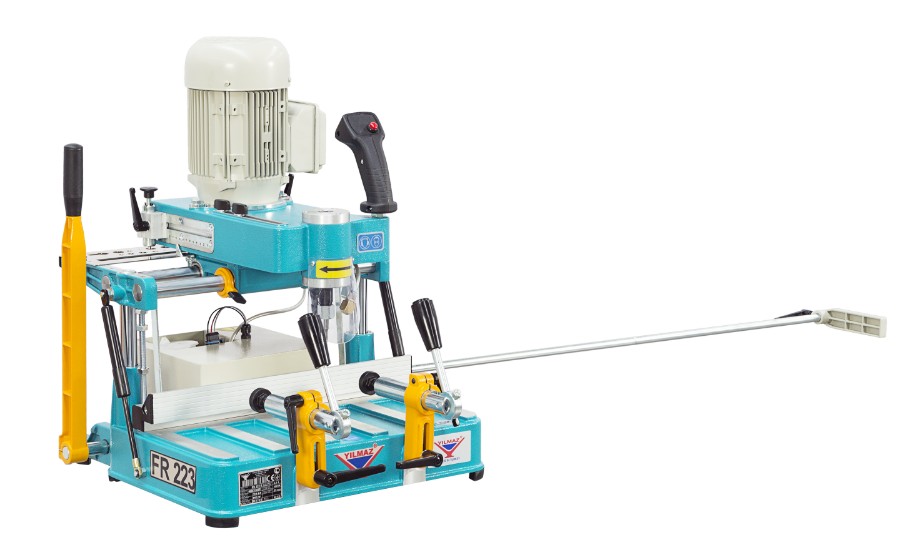

FR 223 - Portable pantograph
€1,500.00
(VAT included)
€1,239.67
(VAT excluded)
shipping cost is not included
How can we help?
Description
Used for machining grooves for latches, drilling holes for handles, hinges, locking mechanisms and cylinder holes, as well as for cutting drainage channels in PVC and aluminium profiles up to 3 mm thick.
STANDARD ACCESSORIES
- Ø5 cutter
- 2x stops for left and right profiles
- 2x horizontal clamps
- Copying template
OPTIONAL ACCESSORIES
- Machine support set
- Spare cutter
- Special copying die
- MKN 150 roller conveyor
GENERAL FEATURES
- Cutting slots, drilling holes for handles, hinges, locking mechanisms and cylinder holes, etc. in PVC and aluminium profiles

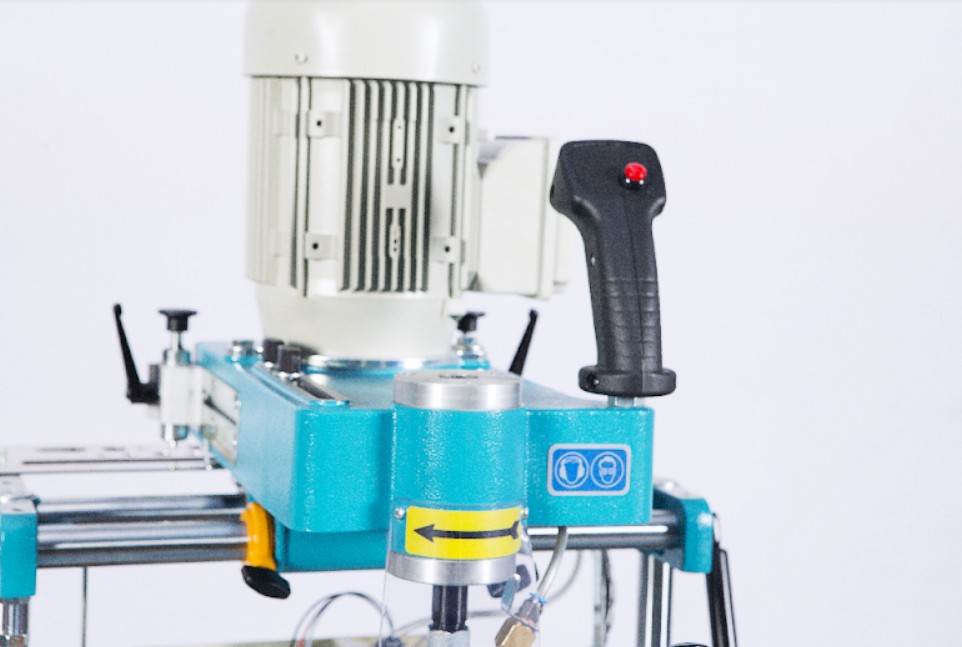

- Ergonomic handle for ease of operation
- Electric spray cooling system during operation
- Die-cast aluminium structure
- Shaft with corrosion-resistant bearing
- Machining capacity: Z:270, Y:110, Z:110 mm
- Clamping capacity: W:140
- Electroplated chrome-plated copying die
- Two tracking pins
- Equipped with Ø5 milling cutter
