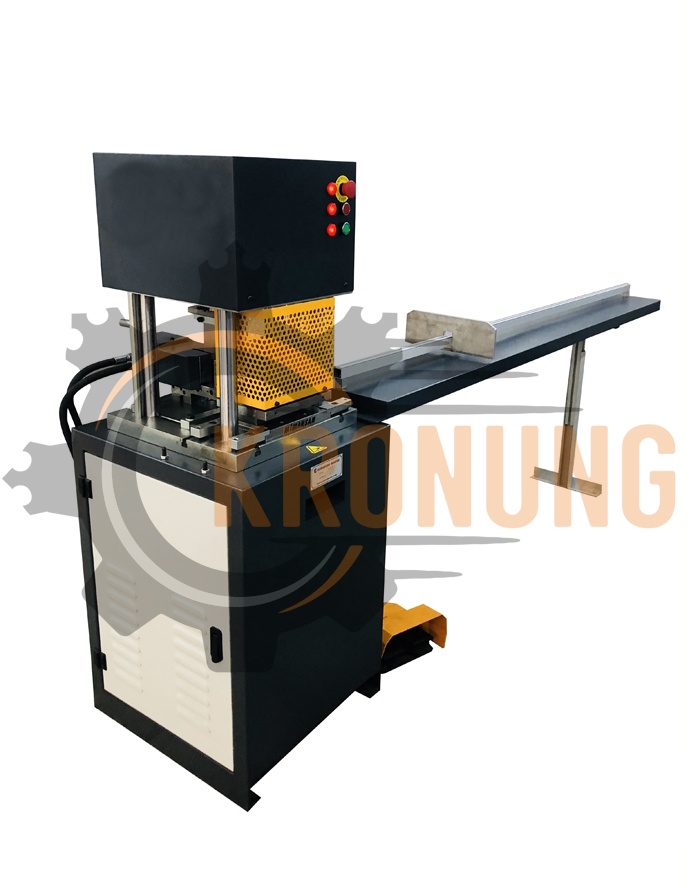

HD200 Hydraulic press for cutting and notching reinforcement bars

Description

WARNING!

To ensure safe operation of the machine, please read the user manual carefully and strictly follow the instructions provided.

KRONUNG Machinery

Machine Overview

The machine is designed to drill holes for handles and locks in the support plate and to cut it to length. The cutting and drilling operations are performed using a hydraulic system. The cutting dies can be changed depending on the size of the support plate. Special dies can be made for different shapes of support plate. The maximum thickness of the support plate is 3 mm. The cutting operation is performed by means of a foot pedal.

Technical Specifications

Installing the machine

1. Place the machine on a level surface.
2. Ensure that the machine’s electrical connection is carried out by a qualified electrician.
3. Check that the machine’s power supply is earthed. If not, ensure that an earth connection is added.
4. The mains voltage must correspond to the three-phase voltage required by the machine (380V).

Start-up and Operating Instructions

1. Plug the machine into the mains socket and switch on the power switch.
2. Check that the motor driving the pump rotates in the direction indicated by the arrow. If the motor does not rotate in the correct direction, the motor will run, but drilling or cutting will not take place.
3. Position the support plate correctly in the die and press the pedal gently.
4. To avoid potential hazards, keep your hands away from the moving parts of the machine whilst it is in operation.
5. Do not allow children to stand near the machine or use it.
6. Do not place objects on the machine and do not lean on or stand on it.
7. Once the operation is complete, the machine will release the machined profile. Place the machined parts in an orderly manner so that they do not touch the machine and to prevent any potential hazards.
8. If a power cut occurs whilst working, switch off the power switch immediately to prevent damage to the machine and accidental operation.
9. At the end of the working day, always switch off the power.
10. Run the machine at idle speed twice every morning before starting work.
11. Ensure that moving parts are always lubricated.
12. Carry out regular maintenance on the cutting dies.

WARNING!

Read and follow all these instructions. If you make mistakes or fail to follow these instructions, you may expose yourself to risks of cutting, crushing, electric shock, etc. It is advisable that all persons working with this machine read these safety instructions.

KRONUNG Machinery guarantees the safe operation of the machine only if the specified rules are followed. In the event of failure to comply with the safety instructions, our company shall not be liable for any problems that may arise.

General Safety Instructions

1. Always keep the workplace clean and tidy. Clutter and inadequate lighting can cause accidents.
2. Keep children and other people away from the machine whilst it is in operation. Take precautions against distractions.
3. Protect the machine from moisture and water. Contact with water can create hazards.
4. Do not place machined parts on electrical cables. This can be dangerous.
5. Ensure that no objects become trapped between the moving parts of the die.
6. Do not insert screwdrivers, steel plates, etc., into the die compartment.
7. Do not press the switches unnecessarily.
8. Be alert and work carefully. Do not use the machine if you are tired, under the influence of medication or alcohol. A moment’s inattention can have dangerous consequences.
9. Put safety first and use the recommended protective equipment.
10. Do not be overconfident. In the event of unexpected situations, unplug the machine and contact our authorised service centre immediately.
11. Wear suitable work clothing. Avoid loose-fitting clothing and jewellery that could hinder your work.
12. Do not alter the machine’s settings and do not allow anyone other than service personnel to do so.

Maintenance and Cleaning

1. Unplug the machine and release the air hose before carrying out any maintenance or cleaning operations.
2. Thoroughly clean away chips, dust and small cuttings from inside, underneath and on the machine.
3. Check the oil level in the hydraulic reservoir.
4. Use only type 46 hydraulic oil in the hydraulic reservoir. Do not use other types of oil.
5. The oil level must be at the red indicator mark.

• KRONUNG Machinery reserves the right to make technical modifications to its products and retains all rights to them.
• KRONUNG Machinery guarantees all its products, provided they are used in accordance with the specified technical and operational conditions.
