SD 201 Automatic (pneumatic) rebar screwdriver

The SD 201 automatic hardware screw-in unit is a specialised pneumatic device used for the automatic insertion of hardware fixing screws into PVC profiles. Here are some of its features:

1. Application: Used for the automatic screwing of reinforcement fixing screws into PVC profiles, this unit is indispensable in the assembly process of PVC windows and doors.

2. Vertical Action: The unit is designed for vertical operation, with a working stroke of 145 mm, thus ensuring efficient and precise operation.

3. Adjustable Bracket: It features an adjustable bracket that allows adaptation to different types of profiles, optimising flexibility and efficiency in the production process.

4. Pneumatic Drive: Operates exclusively with pneumatic drives, eliminating the need for an electrical connection and thus ensuring a high level of operational safety.

5. Simple Control: Control of the equipment is simple and practical, operated via a foot pedal, thus facilitating effortless handling and operation.

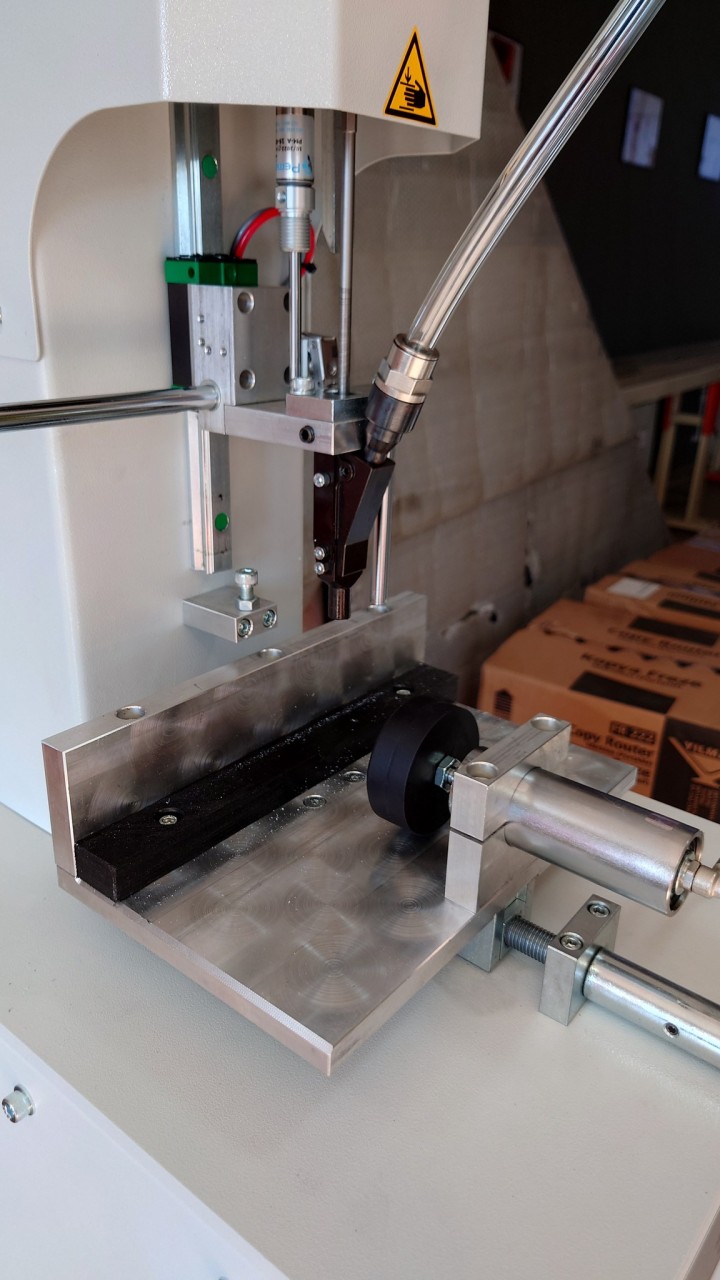

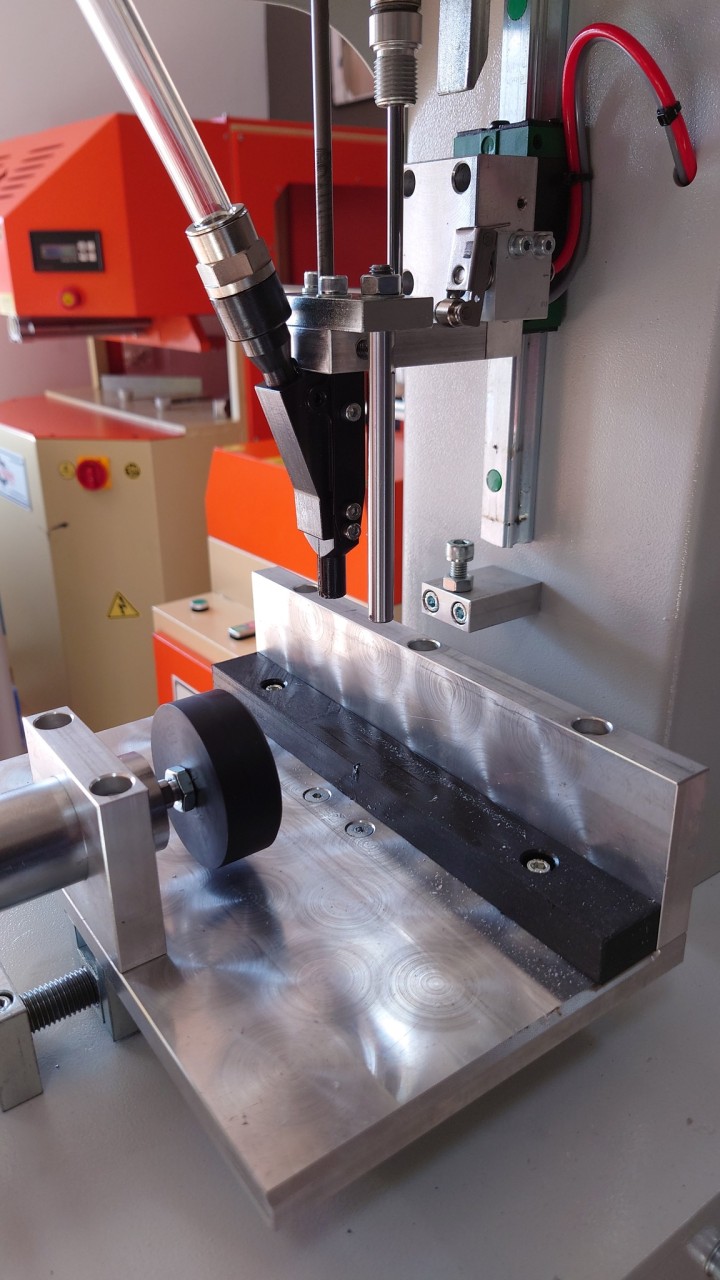

6. Pneumatic Clamping System: Equipped with a pneumatic profile clamping system, it ensures the profile is securely held in place during the screwdriving process.

7. Automatic Screw Feeding: Features an automatic screw feeding system, which optimises workflow and increases operational efficiency.

8. Depth Adjustment: Allows adjustment of the screw threading depth, offering flexibility according to production specifications and requirements.

9. Compatibility with Different Profile Sizes: Can work with profile heights ranging from 35 to 95 mm, thus adapting to different project requirements.

10. Efficient Cycle Time: The cycle time for a standard 3.9x19 mm self-tapping screw is approximately 2 seconds, thus ensuring high productivity in the assembly process.

Standard Equipment:

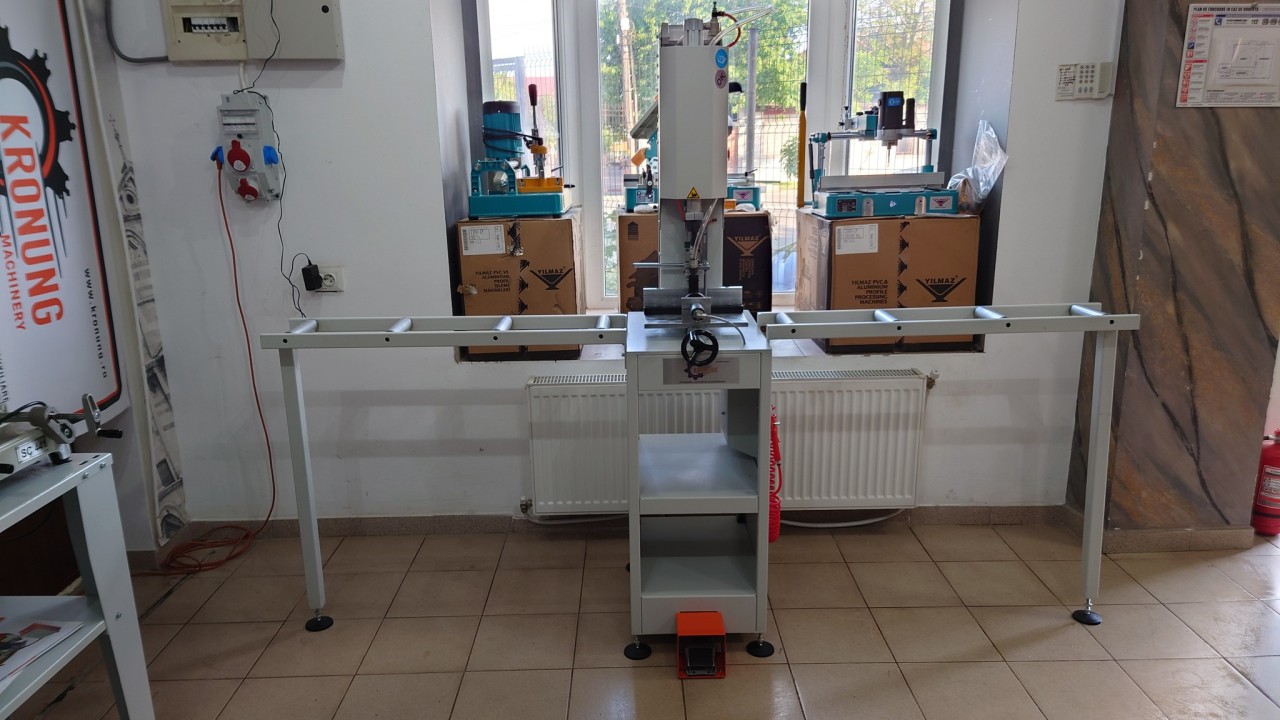

• Includes roller benches, 1 metre left + 1 metre right, to ensure stable support and easy handling of profiles during operations.
