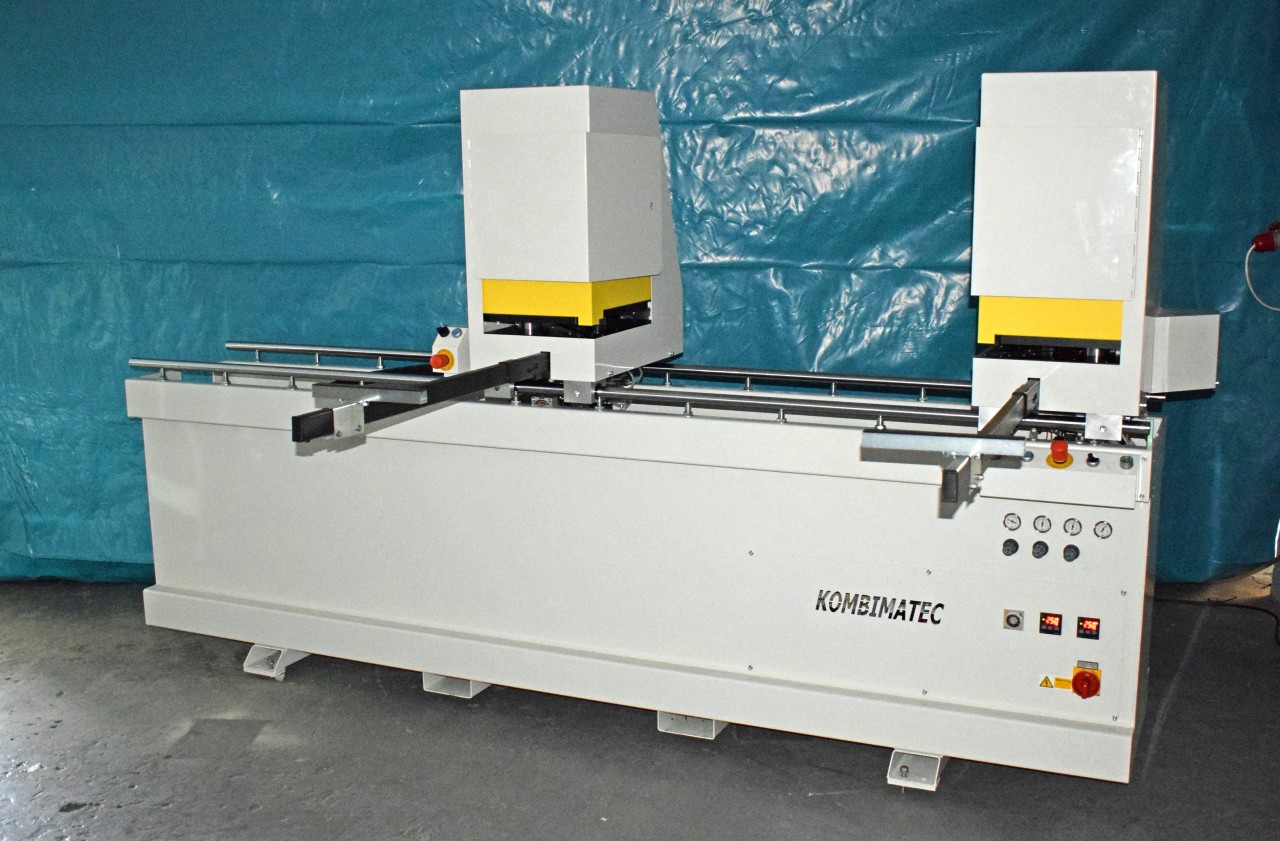

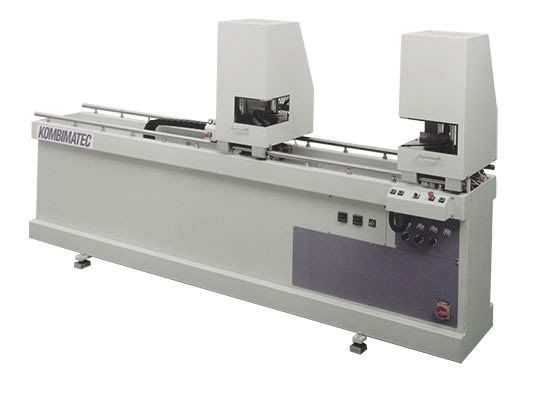

2HD/140 Automatic double-head PVC profile welding machine (adjustable angle 30–180 degrees) 0.2 mm

For Vinyl/PVC Profiles



2HD/140 Double-Head Machine, maximum profile width 150 mm, maximum profile height 140 mm, variable angle 30–180 degrees, maximum welding length 2750 mm, weld thickness limit 2.0 mm, solid steel construction, suspended heating plate, manual safety control, Mitsubishi controller.



New heating plate design for improved weld strength. 3-stage clamp release to minimise stress on welded corners. All-steel construction for greater stability. Faster loading cycle for improved efficiency. Compact design with high welding capacity. Fully automatic welding cycle and integrated digital temperature control for greater precision and reliability. All parameters can be set individually and independently: welding temperature, heating time, fusion pressure, joining pressure, joining time and clamping pressure. Variable welding time: the machine adapts to the cross-section of the profile to be welded. Simultaneously welds 2 corners in a single operation. Rear guides with a scale and positive 90-degree positioning, easily adjustable to allow corner welding from 30 to 180 degrees. Two-hand safety control with a maximum delay of 0.5 seconds to comply with the latest safety regulations. Truly secure clamping system. The clamps lower under their own weight. Automatic 50 mm head travel automates profile positioning and ensures consistency. Built-in programmes allow a qualified technician to mimic the automatic cycle, simplifying fault diagnosis and minimising inconvenience.



• Heating plate dimensions
• Type 2HD/140 240x170 mm
• Type 2HD/200 240x230 mm
• Supply voltage 400 V, 3-phase, 50 Hz Total amperage 9 A
• Compressed air connection 2x2 kW 7 bar/100 psi
• Air consumption per head 40 litres per welding cycle
• Weld Thickness Limiters 2.0 mm
• Heating Plate Temperature 200–300 °C (392–572 °F)
• Dimensions 3015x500x1700 mm
• Weight 600 kg
• Order No. Type 2HD/140 PLC Type 2HD/200 PLC

STANDARD ACCESSORIES:

• Set of support arms
• Cover for heating plate
• Air service unit
• Instruction manual

OPTIONAL ACCESSORIES:

• Teflon cover
• Set of 0.2 mm blades
• 1 Set of outer contour limiters (suitable for the profile)
