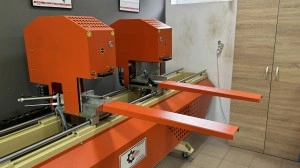

KRG 100GP Automatic double-head PVC profile welding machine (adjustable angle 25–180 degrees, 4 m) 0.2 mm

Description

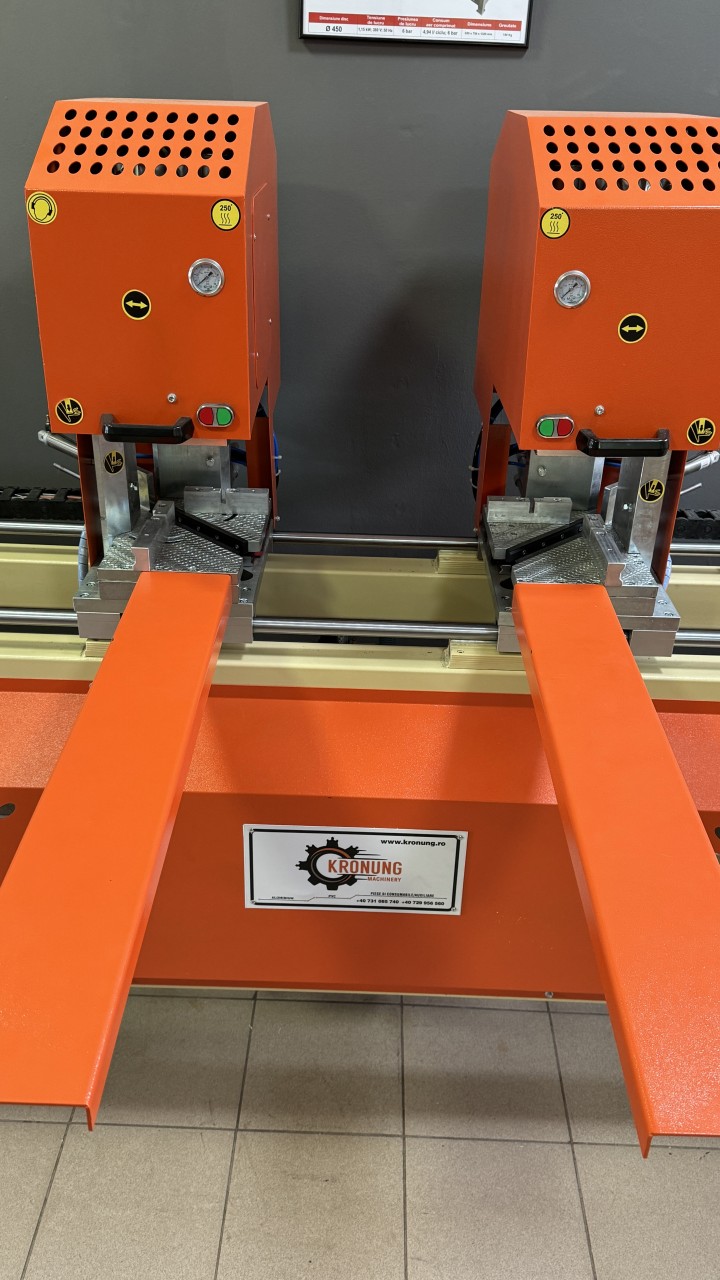

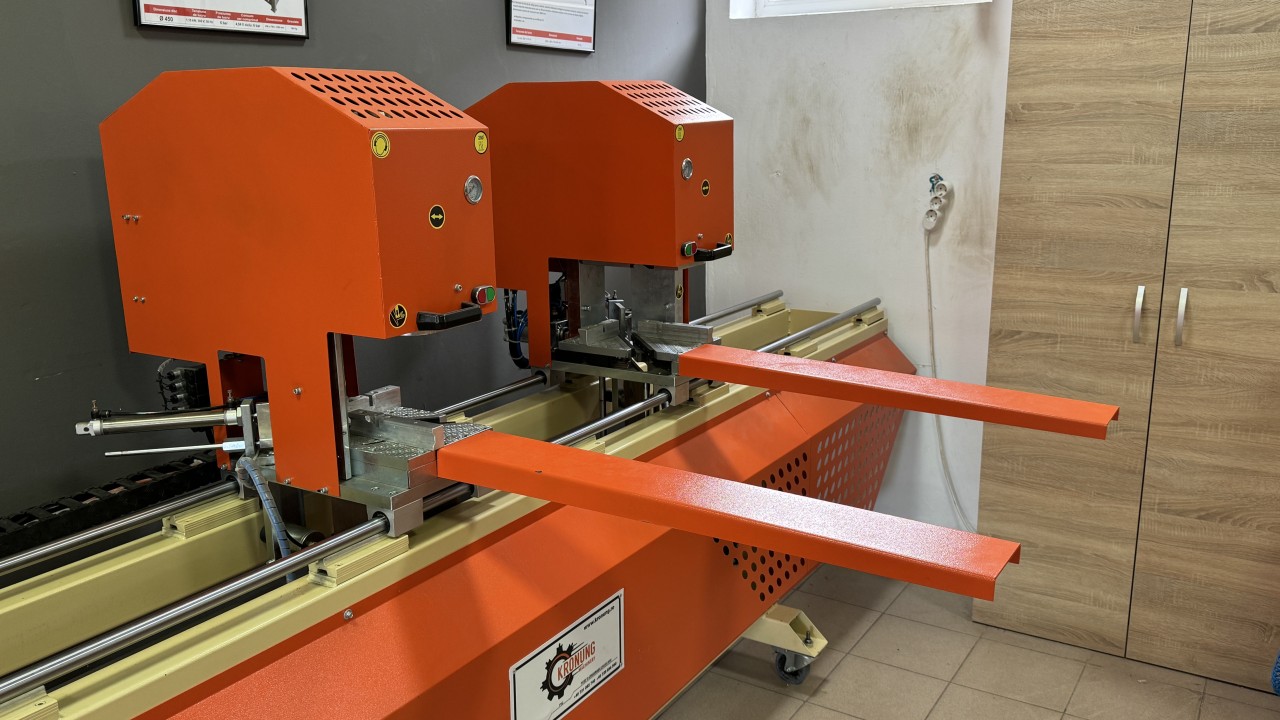

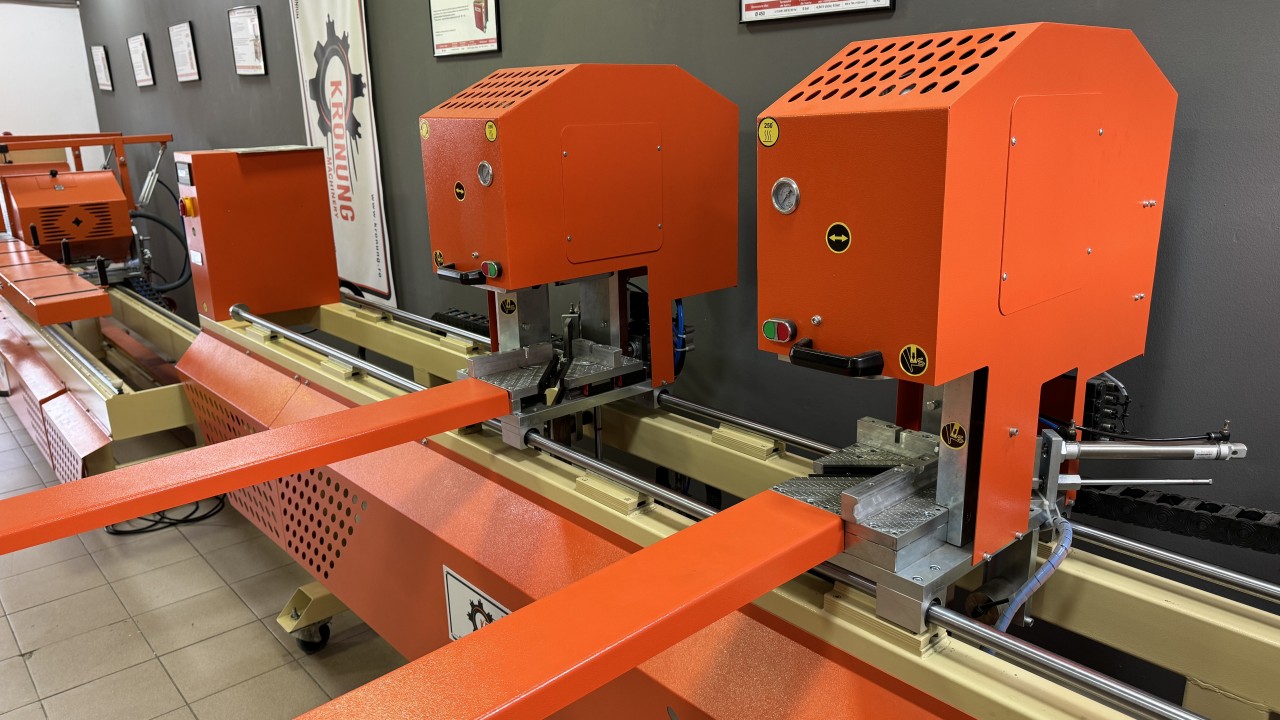

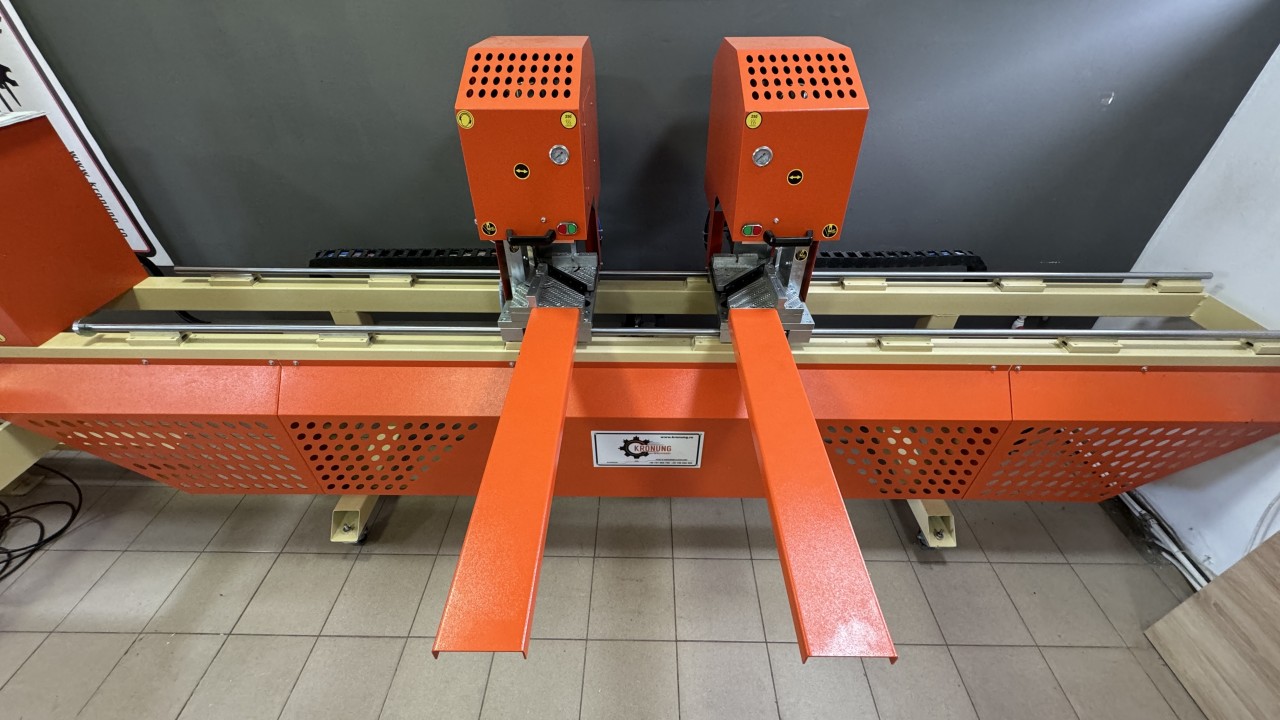

The KRG 100GP is an automatic PVC profile welding machine, designed to deliver efficiency and precision in industrial window and door manufacturing processes. This machine is equipped with two welding heads, enabling the simultaneous welding of two profiles, thereby increasing productivity and reducing processing time.

Key features:

1. Adjustable angle between 25–180 degrees: This offers high versatility, allowing the welding angle to be adjusted to suit a variety of designs and production requirements.

2. 4-metre working length: The ability to handle PVC profiles up to 4 metres in length makes this machine ideal for large projects, ensuring uniform, high-quality welding along the entire length of the profiles.

3. 0.2mm precision: This high precision guarantees perfect joints and superior-quality welds, essential for the durability and aesthetics of the final product.

4. Full automation: The automated system reduces the need for manual intervention, which not only speeds up the production process but also minimises the risk of human error.

5. Robust construction: Manufactured from high-quality materials, the KRG 100 is built to withstand demanding industrial environments, offering reliability and longevity.

6. Easy operation: The intuitive interface and simplified control panel make this machine accessible even to less experienced operators.

7. Compliant with CE standards: This machine complies with all European safety and quality regulations and standards.

8. User-friendly control panel: Simplified operation via an intuitive control panel.

9. Strong weld: Produces strong and durable joints.

10. 0.2 mm weld bead: Ensures a fine and precise weld.

11. Quick-change die system: Enabling quick and efficient adjustments.

12. Adjustable temperature, melting time and pressing time: Adaptable to any type of profile.

13. Digital temperature display: Allows for accurate, real-time monitoring of the welding temperature.

14. Larger platen dimensions: Allows for the welding of ‘box-type’ profiles.

Technical data:

• Maximum profile width: 165 mm

• Minimum profile height: 40 mm

• Maximum profile height: 130 mm

• Voltage: 380V

• Power: 10 kW

• Air pressure: 6–8 bar

• Air consumption: 70 litres/min

• Weight: 520 kg

• Machine dimensions:

  • Length: 3850 mm
  • Width: 780 mm
  • Height: 1515 mm

Options:

• 3-metre version: Ideal for a more compact workshop, offering the same quality and efficiency in a smaller space.

Applications: The KRG 100 is ideal for PVC window and door manufacturers looking to improve the efficiency and quality of their welding processes. It is suitable for both high-volume production and bespoke orders thanks to its flexibility and the ability to adjust welding angles.

In conclusion, the KRG 100 automatic PVC profile welding machine is a top-of-the-range solution for any factory wishing to remain competitive and offer products of the highest quality.
